Solis 3.6kW Hybrid Energy Storage Inverter with DC switch for solar battery storage

#2: SOL-3.6K-RHI-48ES-5G-DC Storage Systems - Hybrid Inverter

#3 : S5-EH1P3.6K-L

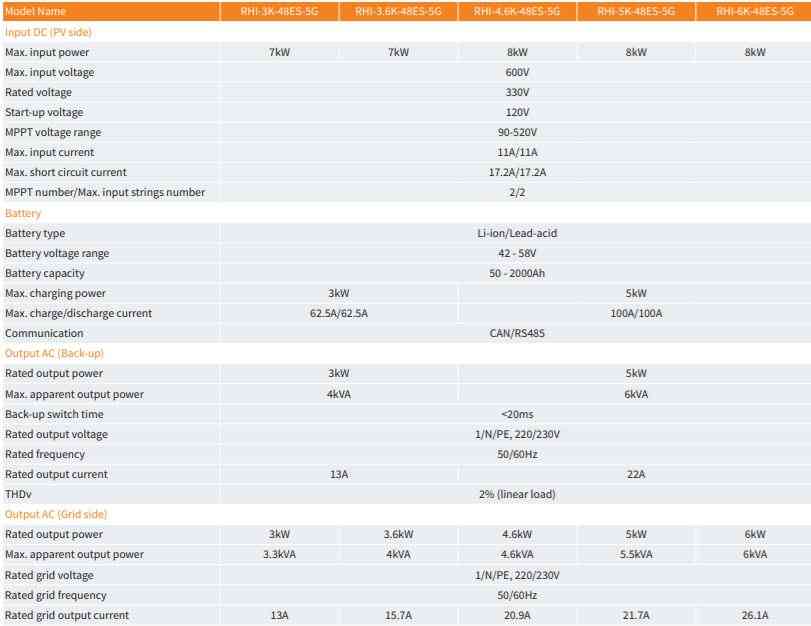

Solis 3.6kw Hybrid Inverter Data Sheet

Solis 3.6kW Hybrid Inverter Manual

Solis 3.6kW Hybrid Inverter Warranty

Solis 3.6kW Hybrid Inverter G99 Certification



For additional 5 year warranty, please click here.

Solis S5-EH1P3.6K-L 5G Hybrid Inverter – 3.6kW (Single Phase)

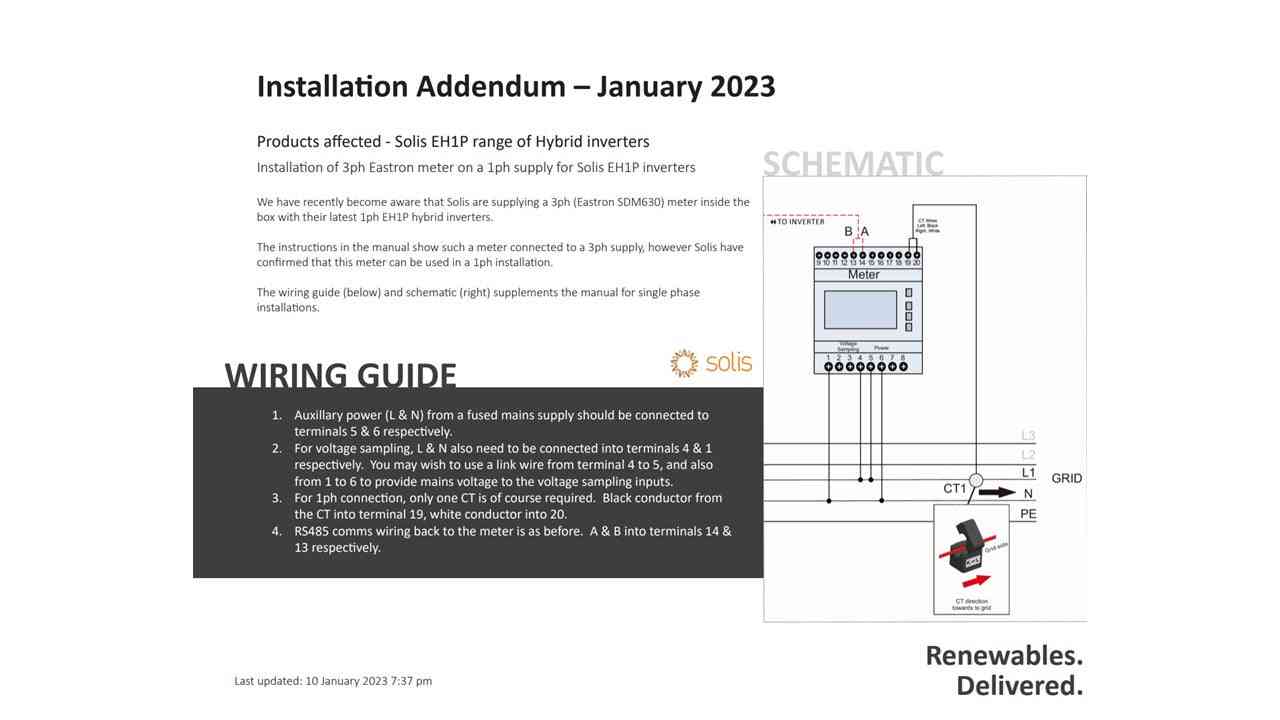

Please note: This inverter is supplied with a 3-phase Eastron SDM630 energy meter and CT clamp, which can also be used in single-phase installations.

Required separately: Solis Data logging stick

The Solis S5-EH1P3.6K-L 5G Hybrid Inverter is designed to deliver reliable backup power during load shedding and help reduce electricity costs by maximising self-consumption. With high efficiency, intelligent management features, and a fanless IP65 design, it is a robust and versatile solution for residential energy systems.

Key Features

• Supplied with 3ph energy meter + CT clamp (compatible with 1ph)

• AI Optimised cloud-based, automated energy management assistant

• Fanless IP65 design for silent, durable operation

• High charge/discharge efficiency for maximum energy utilisation

• Multiple operating modes to maximise self-consumption

• Intelligent BMS function for enhanced battery safety

• 24/7 real-time energy monitoring and intelligent control

• Remote monitoring, control, and firmware upgrades

Technical Specifications

• Rated Power: 3,600 W

• Max DC Power: 5,700 W

• Max Input Voltage: 600 V

• MPPT Voltage Range: 90 V – 520 V

• DC Startup Voltage: 120 V

• Max DC Current: 30 A

• MPPT Trackers: 2

• Euro Efficiency: 96.8%

• Integrated DC Switch: Yes

• Surge AC Power (1s): 4,000 W

• Weight: 20.5 kg

• Warranty: 5 years

The Solis S5-EH1P 5G Hybrid Inverter is the perfect balance of performance, safety, and smart energy management, making it an excellent choice for modern solar and storage setups.
