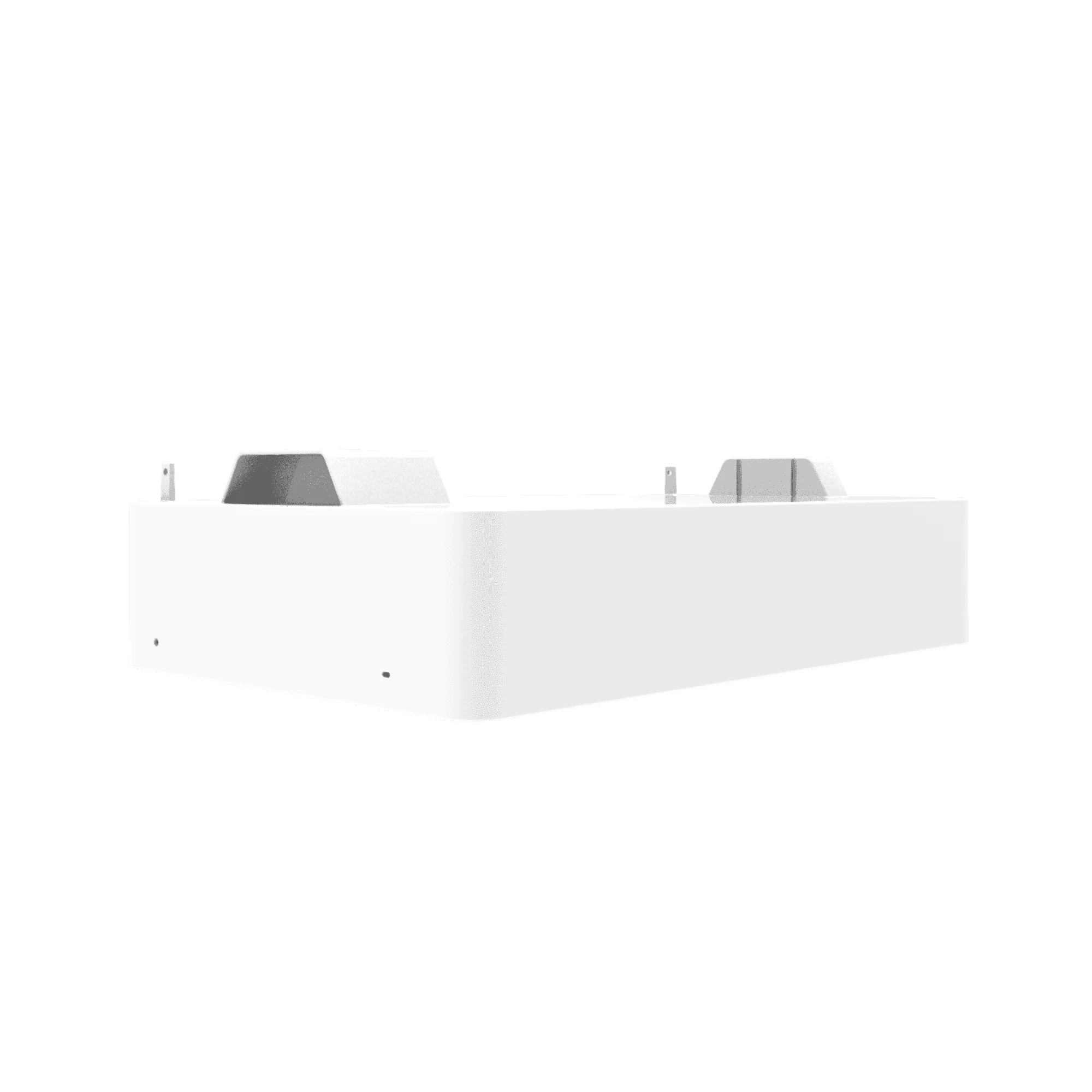

Fox ESS Cube EQ4300 4.32kWh HV Battery (Slave)
-
Fox EQ 4.32kWh HV Battery (Slave)
#2: FE-HV-EQS-4300
Fox EQ - High Voltage Battery (Slave)
Fox EQ is a high-performance, scalable battery storage system. With this modular design's flexibility, it is suitable for a variety of storage requirements. Additional batteries can be installed in series, allowing for a maximum storage capacity of 30.24kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard
Features
- 4.32kWh Capacity
- Scalable to 30.24kWh
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN/RS485 Communication
- High Voltage
Specs
- Weight: 37 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4,145 Wh
- Depth of discharge: 90.00 %
- Voltage: 57 V
- Continuous Discharge Rate (Normal Use): 2,875 W
- Maximum Discharge Rate (5 Minutes): 2,875 W
- Surge Discharge Rate (15 Seconds): 3,737 W
- Maximum Charge Rate (5 Minutes): 2,875 W
Remember: In order to activate the extended warranty to 12 years, please register your install with Fox online, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
-
Fox EQ 4.32kWh HV Battery (Slave)
#2: FE-HV-EQS-4300
Fox EQ - High Voltage Battery (Slave)
Fox EQ is a high-performance, scalable battery storage system. With this modular design's flexibility, it is suitable for a variety of storage requirements. Additional batteries can be installed in series, allowing for a maximum storage capacity of 30.24kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard
Features
- 4.32kWh Capacity
- Scalable to 30.24kWh
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN/RS485 Communication
- High Voltage
Specs
- Weight: 37 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4,145 Wh
- Depth of discharge: 90.00 %
- Voltage: 57 V
- Continuous Discharge Rate (Normal Use): 2,875 W
- Maximum Discharge Rate (5 Minutes): 2,875 W
- Surge Discharge Rate (15 Seconds): 3,737 W
- Maximum Charge Rate (5 Minutes): 2,875 W
Remember: In order to activate the extended warranty to 12 years, please register your install with Fox online, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
Description
-
Fox EQ 4.32kWh HV Battery (Slave)
#2: FE-HV-EQS-4300
Fox EQ - High Voltage Battery (Slave)
Fox EQ is a high-performance, scalable battery storage system. With this modular design's flexibility, it is suitable for a variety of storage requirements. Additional batteries can be installed in series, allowing for a maximum storage capacity of 30.24kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard
Features
- 4.32kWh Capacity
- Scalable to 30.24kWh
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN/RS485 Communication
- High Voltage
Specs
- Weight: 37 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4,145 Wh
- Depth of discharge: 90.00 %
- Voltage: 57 V
- Continuous Discharge Rate (Normal Use): 2,875 W
- Maximum Discharge Rate (5 Minutes): 2,875 W
- Surge Discharge Rate (15 Seconds): 3,737 W
- Maximum Charge Rate (5 Minutes): 2,875 W
Remember: In order to activate the extended warranty to 12 years, please register your install with Fox online, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
