SolaX V2 Triple Power HV 5.8kWh LFP Main Battery MASTER

#2: HV-T-BAT-H-58-MASTER-V2 Storage Systems - Lion Battery Pack
#3: 3211#4034

V2 batteries confirmed to be compatible with V1 slave batteries

SolaX 5.8kWh Data Sheet

SolaX 5.8kWh Manual

SolaX 5.8kWh Warranty

Solax Triple Power LFP Master Battery (T-BAT-H-58) – 5.8kWh

The SolaX Triple Power LFP Battery is the ideal energy storage partner for the X1-Hybrid, X3-Hybrid, and X1-AC inverter ranges. Available as a 5.8kWh Master and 5.8kWh Slave, this modular system allows flexible scaling up to 23.2kWh.

With high voltage architecture for thinner cabling, 90% depth of discharge, and 6,000 life cycles, the Triple Power battery is a reliable long-term storage solution.

---

Key Features

• 5.8kWh capacity per module

• Scalable to 23.2kWh (Master + up to 3 Slaves, charger dependent)

• Up to 4kW charge/discharge rate

• 90% depth of discharge for optimal usage

• 6000 life cycles – long-lasting durability

• Compact, plug-and-play design – all cables supplied

• High-voltage design reduces cabling costs

• Arrives with Blue TOP (moving to Black TOP in future)

---

Installation Notes

• Single-phase systems: 1x Master + max. 2 Slaves (3 batteries total)

• Three-phase systems: 1x Master + 2–3 Slaves (4 batteries total)

• Compatibility: Triple Power LFP 5.8kWh Slaves can only be paired with LFP 5.8kWh Masters.

  • ⚠️ Not compatible with Generation 1 or 2 BMS or batteries.

---

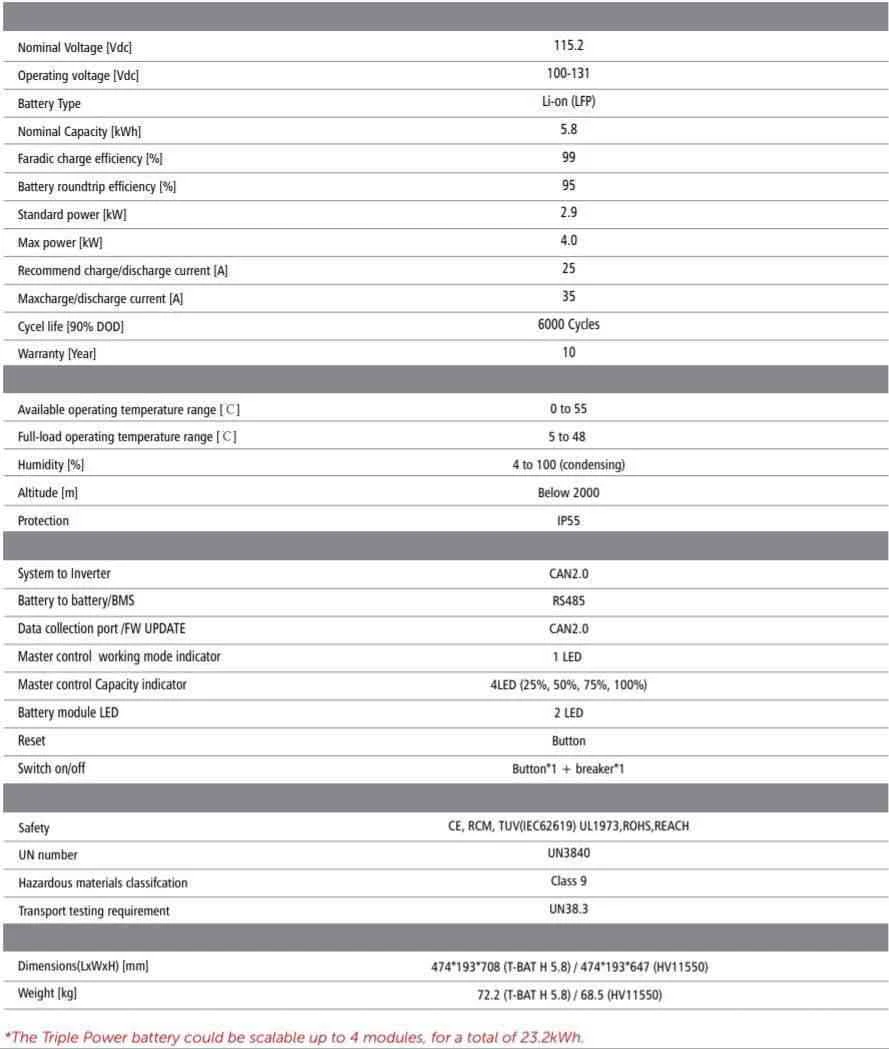

Technical Specifications

• Weight: 72.2 kg

• Battery Type: Lithium-Ion (LFP)

• Nominal Energy: 5,800 Wh

• Depth of Discharge: 90%

• Voltage: 115 V

• Continuous Discharge Rate (Normal Use): 2,875 W

• Maximum Discharge Rate (5 minutes): 4,000 W

• Surge Discharge Rate (15 seconds): 4,000 W

• Maximum Charge Rate (5 minutes): 4,000 W

---

✅ A future-proof, scalable battery solution, perfect for homes and businesses looking to expand storage capacity with their SolaX hybrid inverters.
