This offer consists of:

1 x 6kW single phase hybrid inverter

2 x 5kWh battery

This INTEGRATED All In One residential ESS comes with a 6kW hybrid single-phase inverter and extensible battery modules with a capacity from 5 - 20kWh.

With excellent performance in economy, safety and robustness, it also has other functions such as VPP, micro-grid, smart schedule and smart scene.

Features:

• Plug and play - easy to install
• High Performance - cycle life > 6000 times
• Smart Load Management (heat pump, smart EV charger etc.)

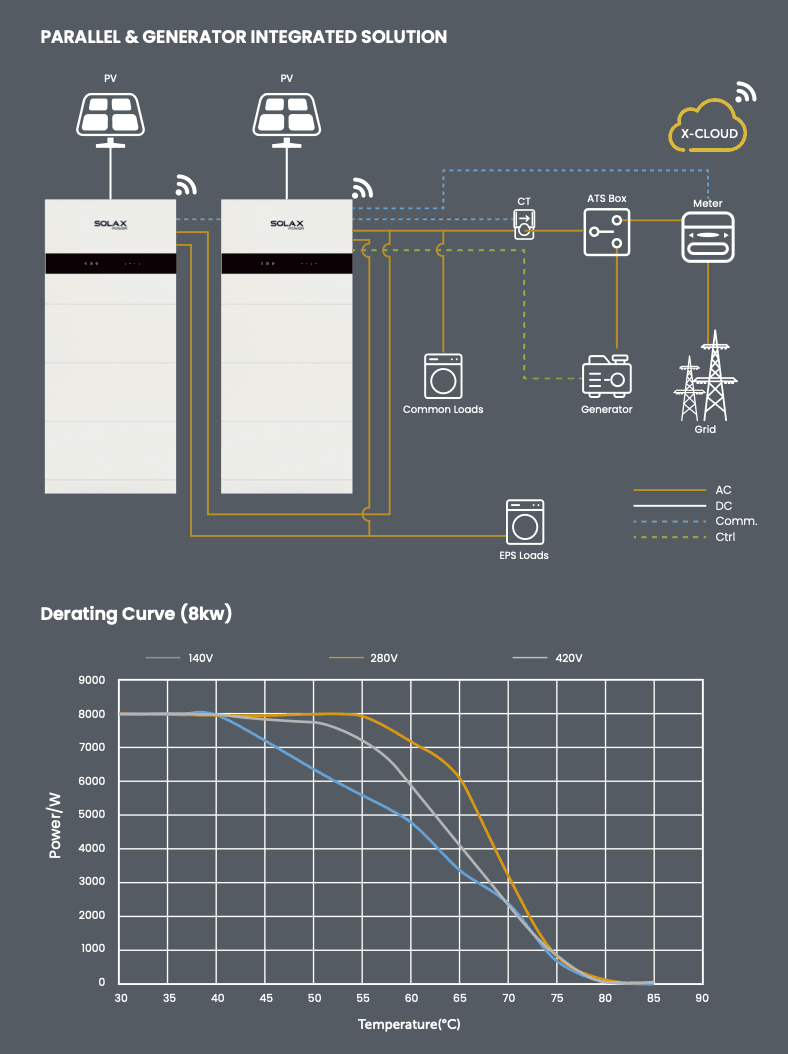

• Micro-grid support for real-time grid/off-grid balancing
• Wireless meter compatibility
• IP66 rated
• Dimensions: 730 x 1226 x 210mm
• Warranty: 10 years

Specs:

• Max PV Power: 7.4kWp
• Max PV Voltage: 600 V
• Startup Voltage: 50 V
• Min PPT Voltage: 40 V
• Max PPT Voltage: 560 V
• AC Output Power: 6,000W
• AC Output Current: 26.1A
• Max DC Current:  50 A
• Max Efficiency: 97.6 %
• MPPT Quantity: 2

Please check the warranty document for more information
